Thank you for purchasing Serwall furniture. We have planned that assembly is a quick and straightforward process with our explicit instruction below so that you can assemble your furniture quickly – even after you have moved to a new home.

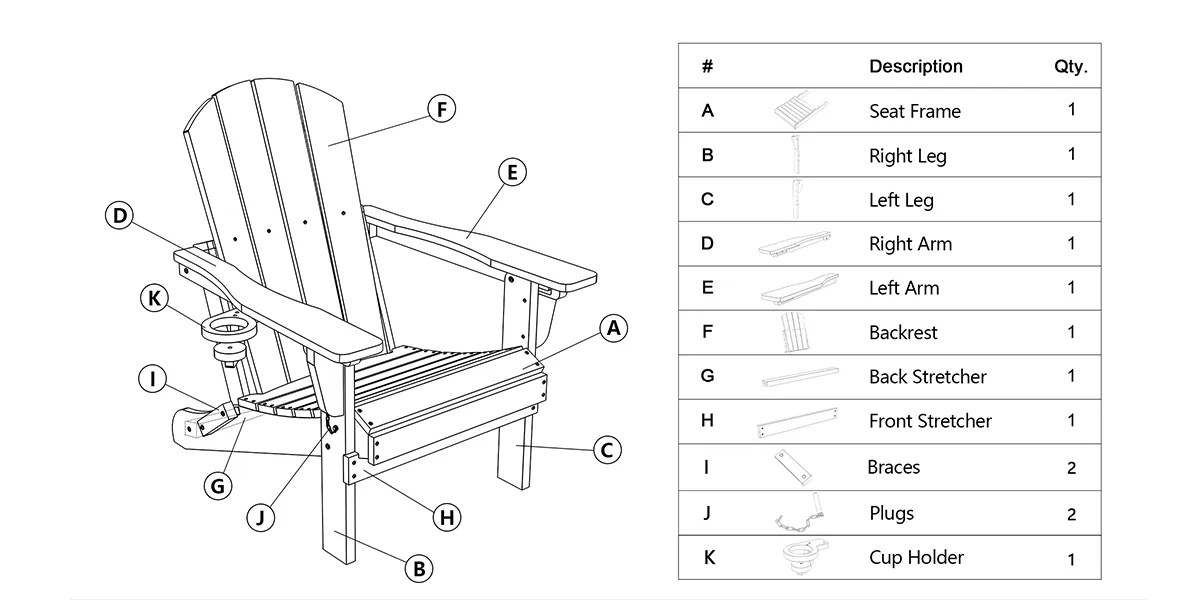

Components
Please make sure that all parts (as follows) have been delivered without any damages.

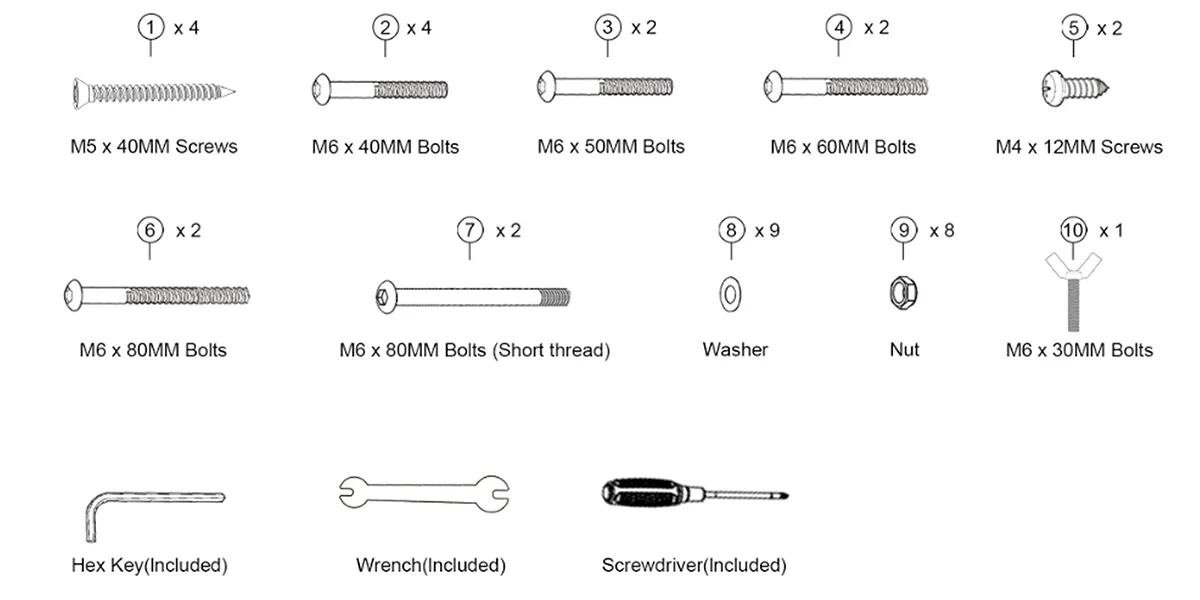

Hardwear & Tools
Be sure check all packing material carefully for small parts that may have come loose inside the carton during shipment.
Missing anything? No worries, submit a request about your missing parts, we will solve your problem in no time.
Assembly Procedure
- Caution: Please do not over-tighten bolts during assembly.

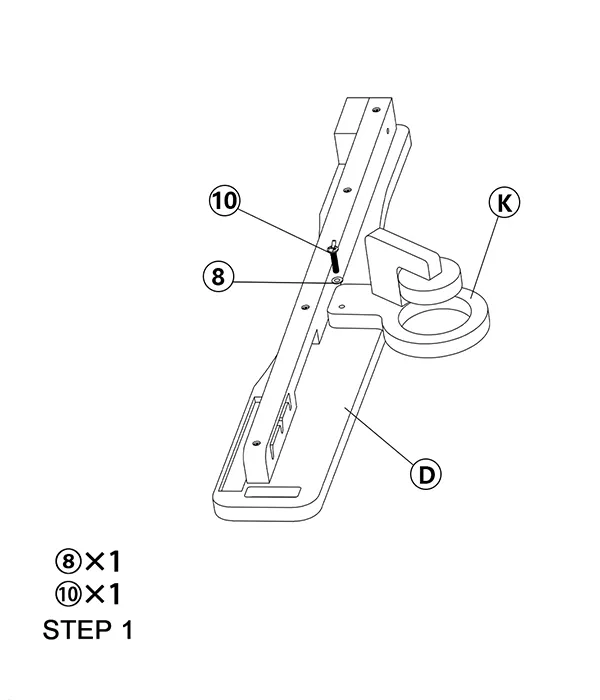

- Attach “Cup Holder (K)” to “Right Arm(D)”-Using”⑩M6 x 30MM Bolts” and “⑧Washers”,tighten with hand.

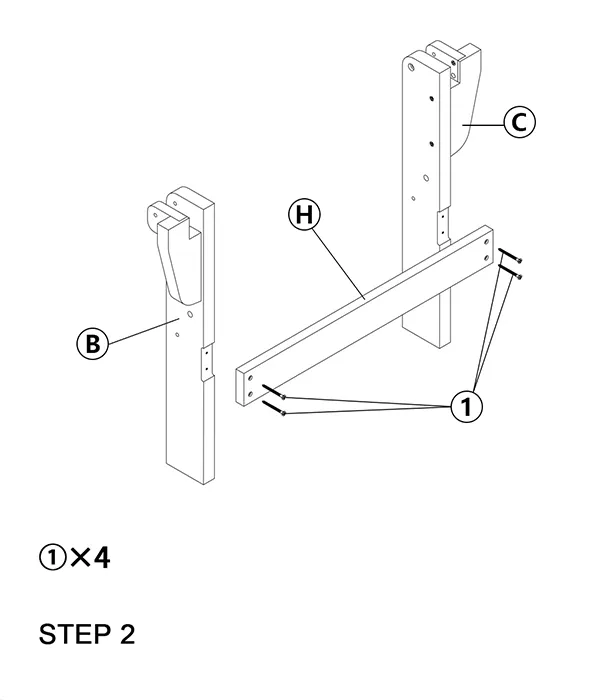

- Attach “Front Stretcher (H)” to “Chair Legs (B/C)” – Using”①M5 x 40MM Screws”, tighten with screwdriver.

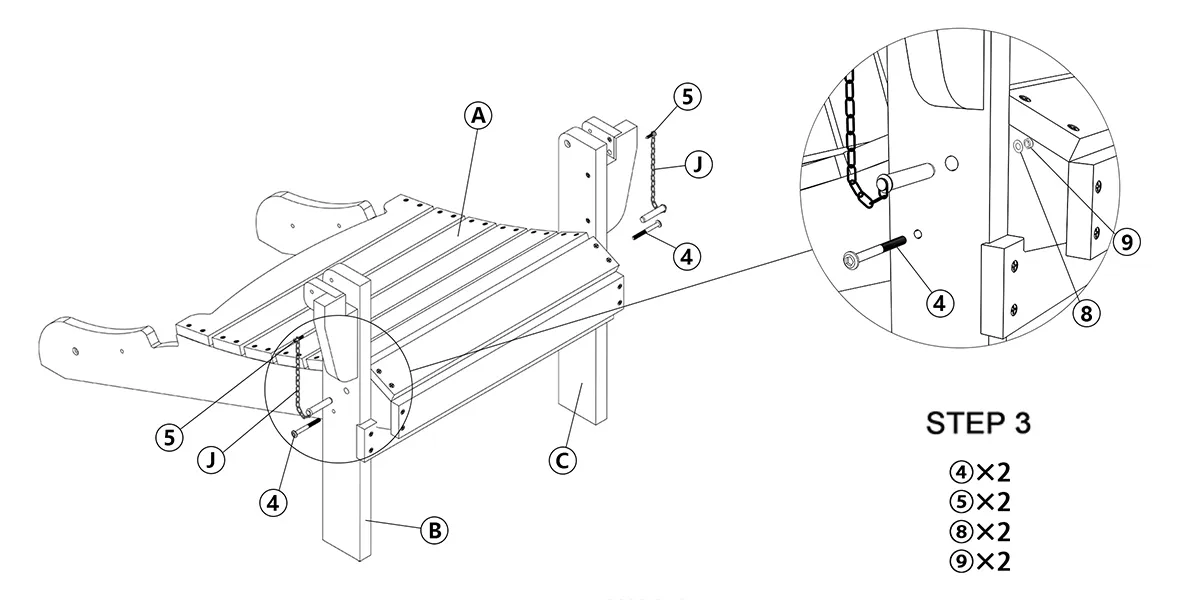

- Attach “Chair Legs (B/C)” to “Seat Frame(A)”- Using “④M6 x 60MM Bolts” with “⑧Washer” and “⑨Nut” , tighten with hex key and wrench.
- Attach “Plug (J)” to “Chair Legs (B/C)”-Using “⑤M4 x12MM Screws”, tighten with screwdriver, insert the “Plug (J)” into the holes on “Chair Legs (B/C)”
- [ATTENTION] Please do not over tighten nuts at this step, ensure the bolts can adjust for backrest reclining.

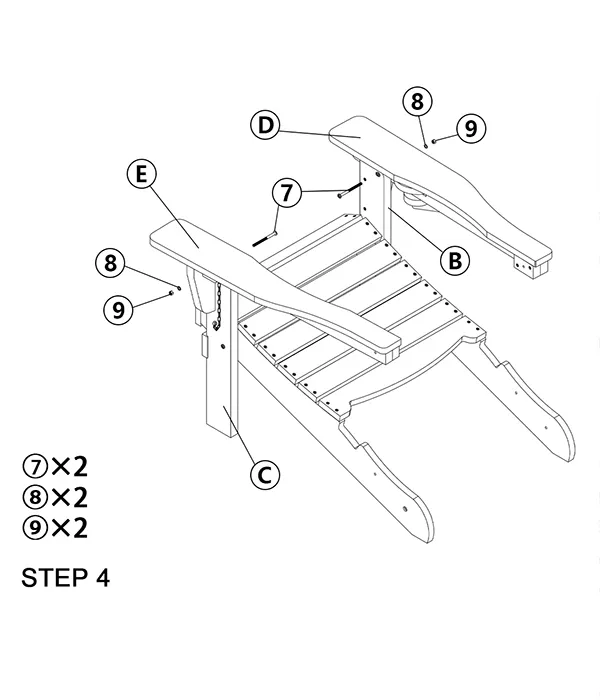

- Attach “Chair Arms (D/E)” to “Chair Legs (B/C)”-Using “⑦M6 x 80MM Bolts” with “⑧Washer” and “⑨Nut” , tighten with hex key and wrench.

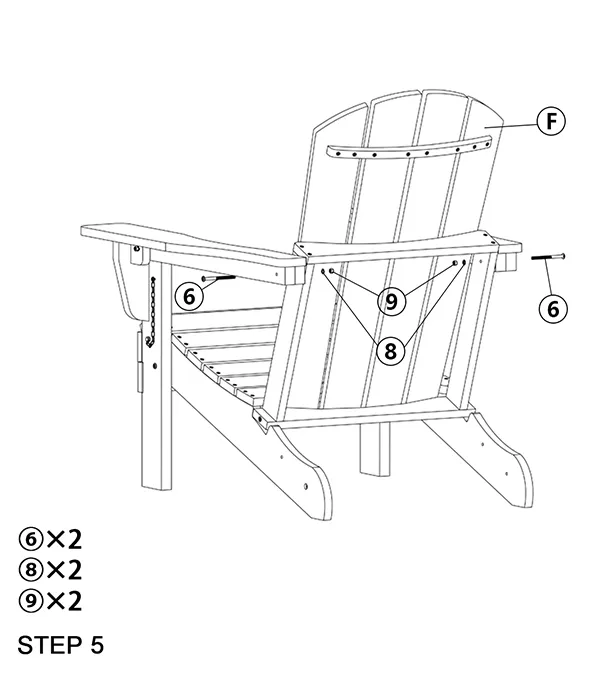

- Attach “Chair Arm (D/E)” to”Backrest (F)”-Using”⑥M6 x 80MM Bolts” with “⑧Washer” and “⑨Nut” tighten with hex key.

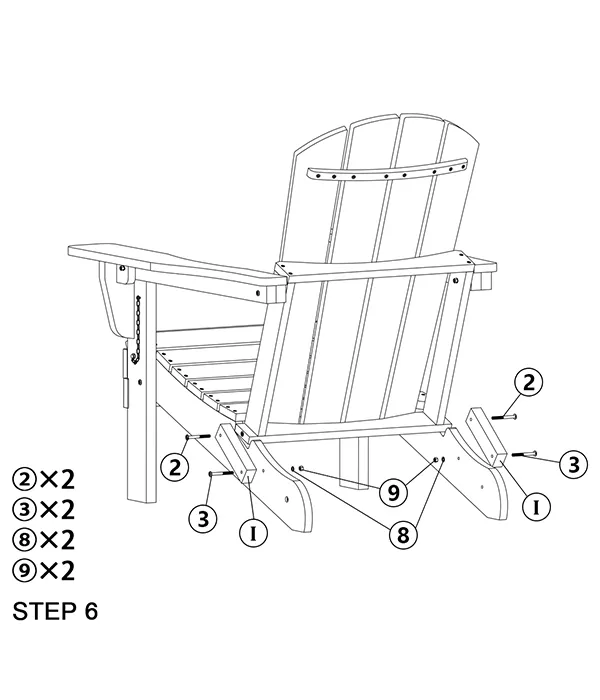

- Attach “Backrest (F)” to “Seat Frame (A)” with”Brace (l)” – Using “③M6 x 50MM Bolts” with “⑧Washer” and “⑨Nut” in the back legs, and using “②M6 x 40MM Bolts” on the backrest frame, tighten with hex key and wrench.

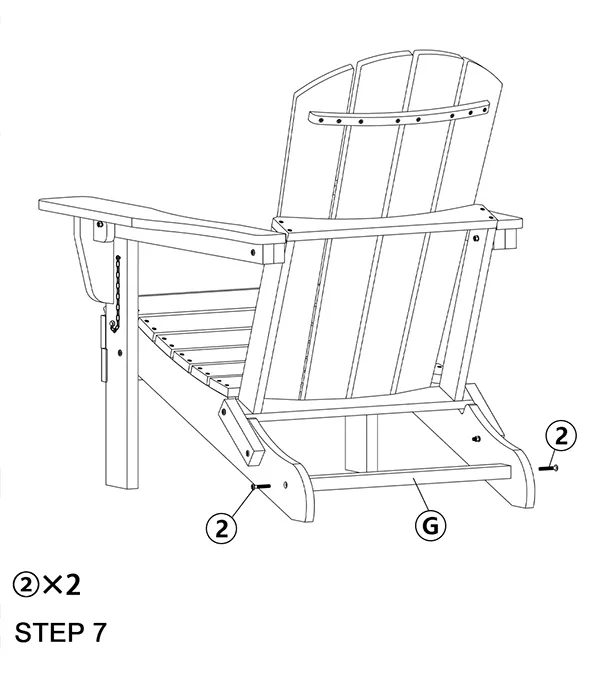

- Attach “Back Stretcher (G)” to “Seat Frame (A)”-Using “②M6 x 40MM Bolts”, tighten with hex key.
Folding Function
This Adirondack chair can be easily folded flat by pulling out the “Plugs (L)” inserted in the front legs. To avoid damage, please keep the plugs inserted when the chair is in use.

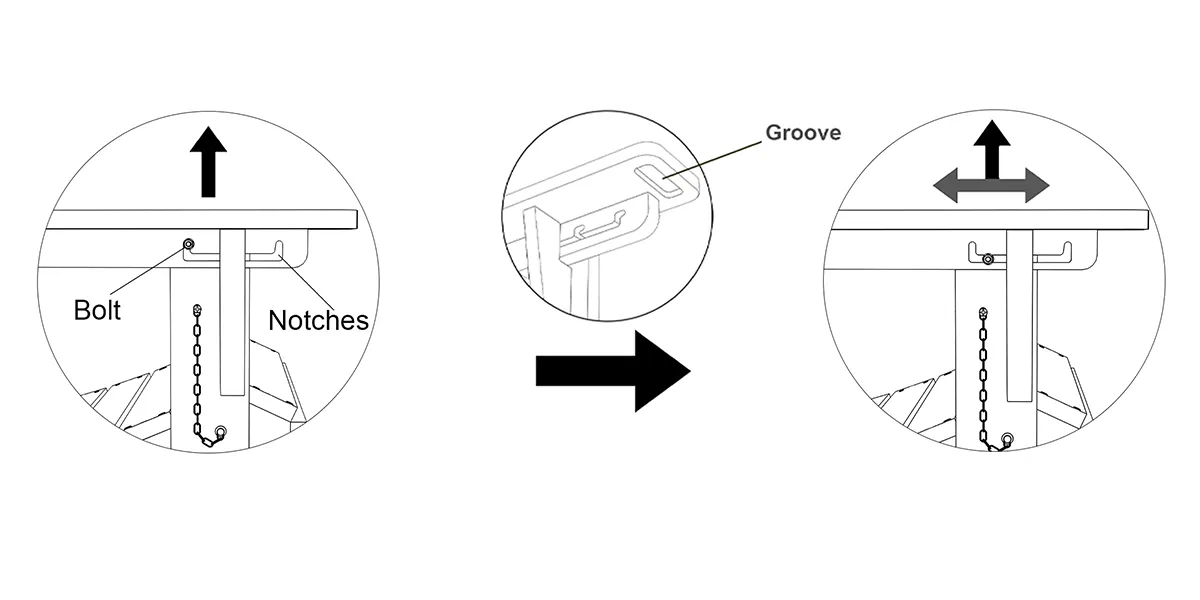

Reclining Function
- Lift both the armrests.
- Pull forward or backward to adjust the backrest to a particular position.
- Then put the armrests down to let bolts rest on the notches simultaneously.
- (Please do not lay on the backrest when you are adjusting)
Screws, bolts, nuts, and wooden plugs may loosen up during regular use every day. They should be periodically inspected and re-tightened to prevent damage to the furniture and (or) personal property or cause injury. Always check to ensure all hardware and the components mentioned above are attached to the furniture properly and kept tightened at all times.
