Thank you for purchasing Serwall furniture. We have planned that assembly is a quick and straightforward process with our explicit instruction below so that you can assemble your furniture quickly – even after you have moved to a new home.

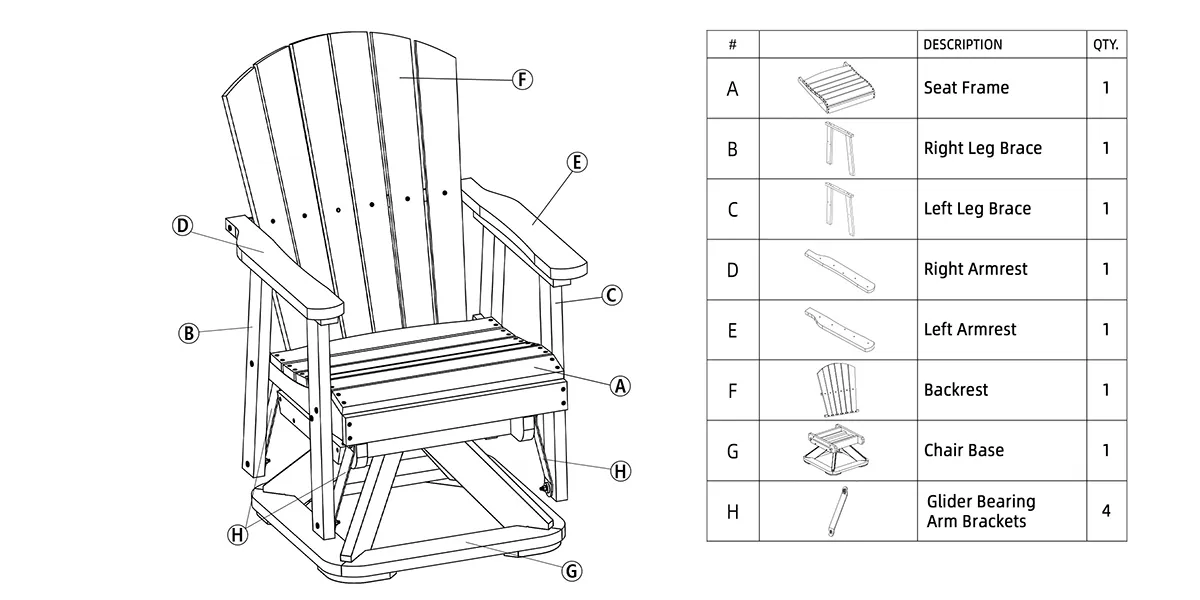

Components
Please make sure that all parts (as follows) have been delivered without any damages.

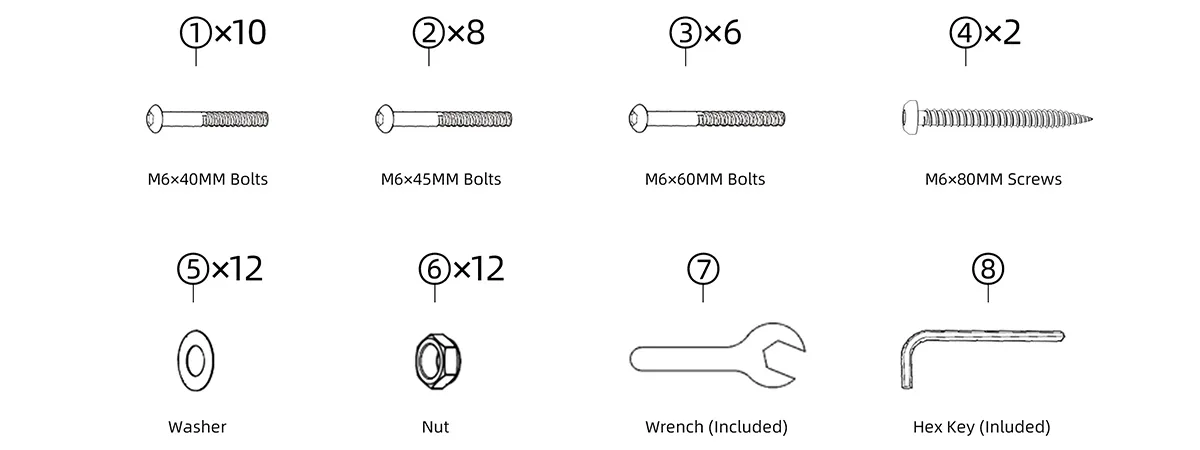

Hardwear & Tools
Be sure check all packing material carefully for small parts that may have come loose inside the carton during shipment.
Missing anything? No worries, submit a request about your missing parts, we will solve your problem in no time.
Assembly Procedure
- Caution: Please do not over-tighten bolts during assembly.

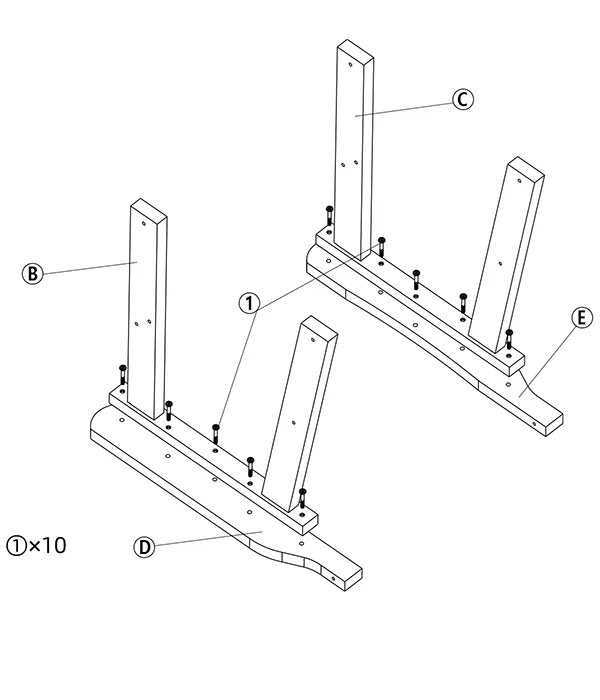

STEP 1
- Attach “Right Leg Brace (B)” to “Right Armrest (D)” – Using “①M6 x 40MM Bolts”, tighten with hex key.
- Attach “Left Leg Brace (C)” to “Left Armrest (E)”- Using “①M6 x 40MM Bolts”, tighten with hex key.
Attention:The oblique leg of “Leg Brace(B/C)” is facing backward.

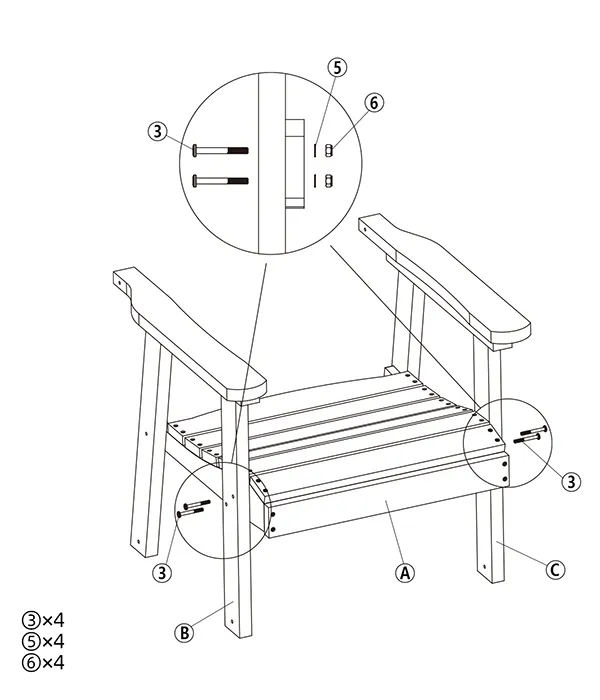

STEP 2
- Attach “Leg Brace(B/C)”to “Seat Frame(A)” – Using “③M6 x60MM Bolts” with “⑤Washer” and “⑥Nut” , tighten with hex key and wrench.
STEP 3
- Attach “Backrest (F)” to “Seat Frame (A)”and “Leg Brace (B/C)” – Using “③M6 x60MM Bolts” ,tighten with hex key.
- Attach “Armrest (D/E)” to “Backrest (F)” -Using “④M6 x 80MM Screws” ,tighten with hex key.
STEP 4
- Attach “Glider Bearing Arm Brackets(H)” to “Chair Base (G)”- Using “②M6 x45MM Bolts” with “⑤Washer” and “⑥Nut”, tighten with hex key and wrench.

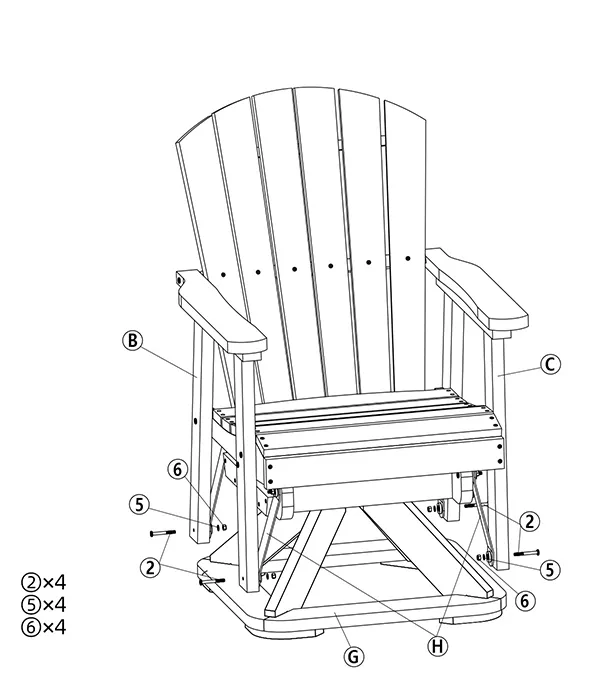

STEP 5
- Attach “Glider Bearing Arm Brackets(H)” to “Leg Brace (B/C)”- Using “②M6 x45MM Bolts” with “⑤Washer” and “⑥Nut, tighten with hex key and wrench.

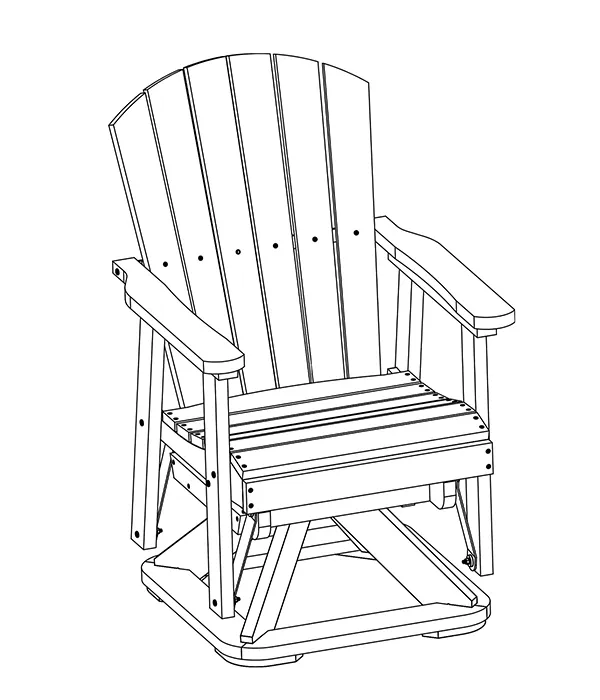

STEP 6
- Stand the chair.
Place the chair on a LEVEL SURFACE. Inspect it and make sure all parts are adequately connected.
Your chair is ready for use.
Screws, bolts, nuts, and wooden plugs may loosen up during regular use every day. They should be periodically inspected and re-tightened to prevent damage to the furniture and (or) personal property or cause injury. Always check to ensure all hardware and the components mentioned above are attached to the furniture properly and kept tightened at all times.
