Reclining Folding Adirondack Chair with Ottoman Assembly Instruction

Thank you for purchasing Serwall furniture. We have planned that assembly is a quick and straightforward process with our explicit instruction below so that you can assemble your furniture quickly – even after you have moved to a new home.

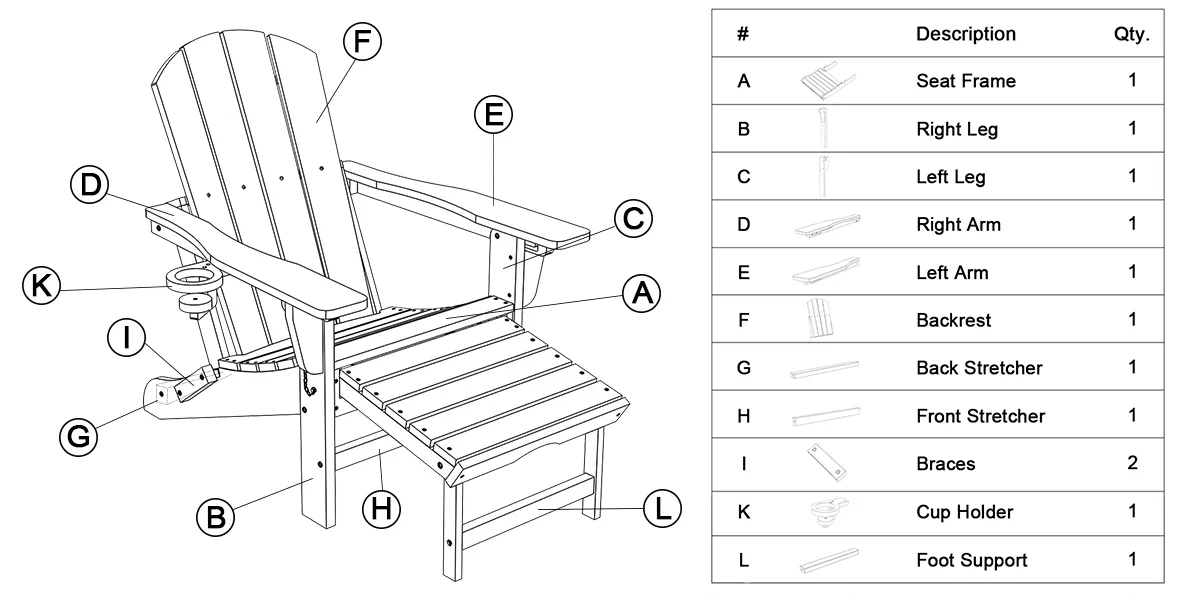

Components

Please make sure that all parts (as follows) have been delivered without any damages.

parts of Reclining Folding Adirondack Chair with Ottoman

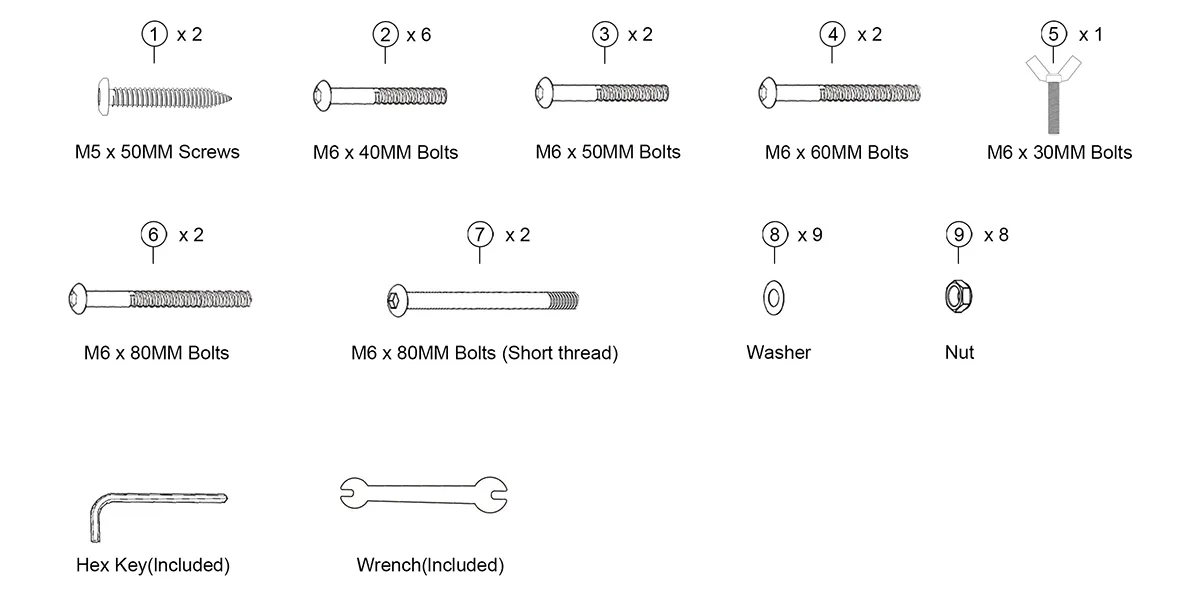

Hardwear & Tools

Be sure check all packing material carefully for small parts that may have come loose inside the carton during shipment.

hardware of Reclining Folding Adirondack Chair with Ottoman

Missing anything? No worries, submit a request about your missing parts, we will solve your problem in no time.

Assembly Procedure

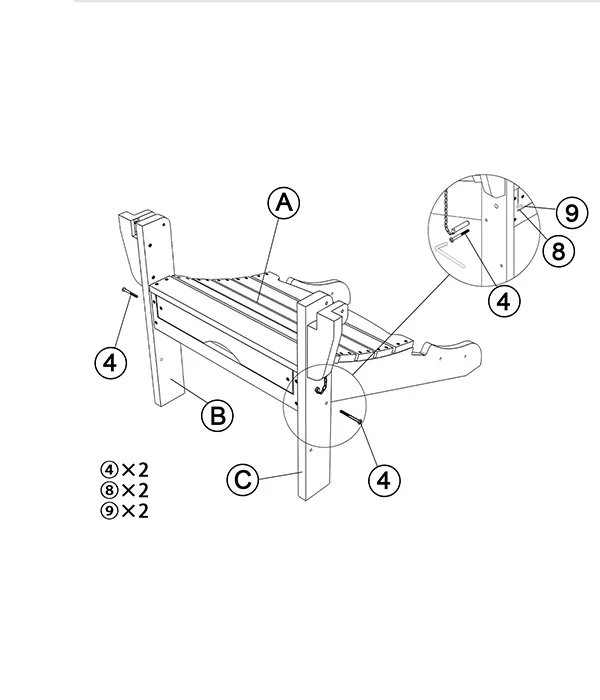

Reclining Folding Adirondack Chair with Ottoman assembly step1

STEP 1:

  • Attach “Chair Legs (B/C)” to “Seat Frame (A)”- Using “④M6 x 6OMM Bolts” with “⑧Washer” and “⑨Nut” , tighten with hex key and wrench.

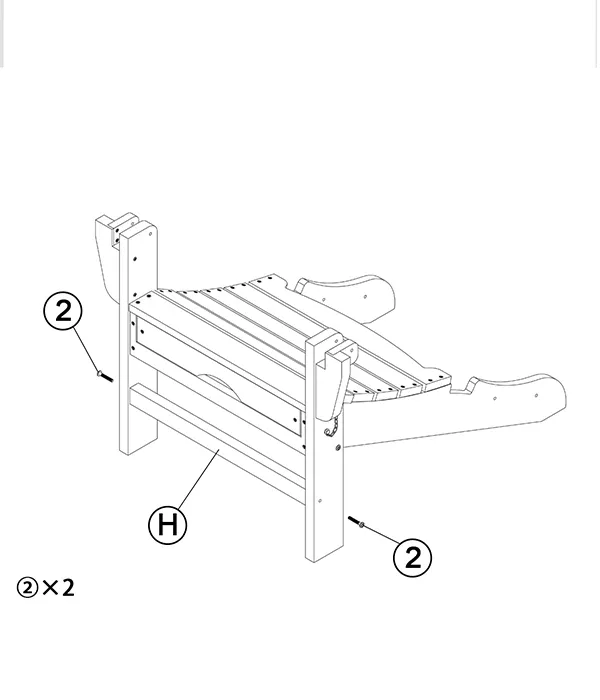

Reclining Folding Adirondack Chair with Ottoman assembly step2

STEP 2:

  • Attach “Front Stretcher (H)” to “Chair Legs (B/C)”-Using “②M6 x 40MM Bolts”, tighten with hex key.

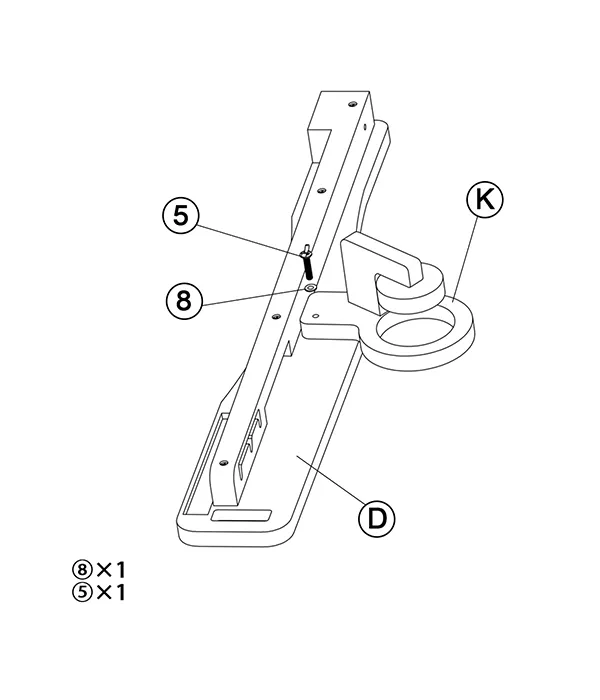

Reclining Folding Adirondack Chair with Ottoman assembly step3

STEP 3:

  • Attach “Cup Holder (K)” to “Right Arm (D)”-Using”⑤M6 x 30MM Bolts” and “⑧Washer”,tighten with hand.

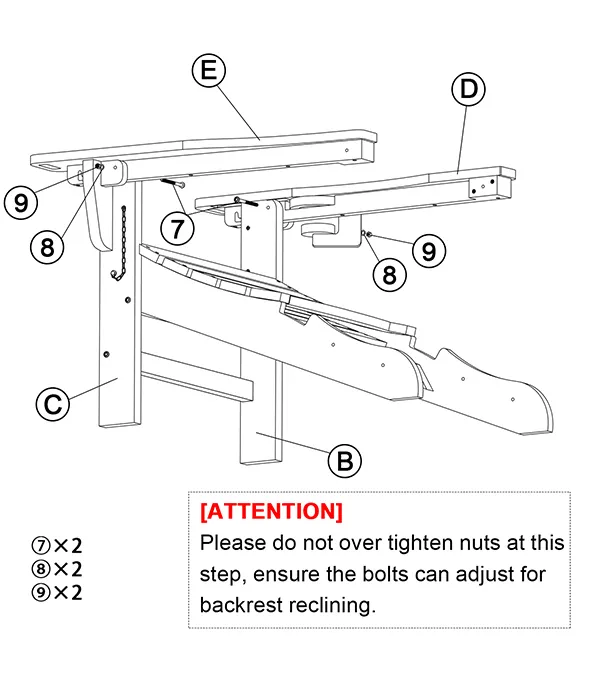

Reclining Folding Adirondack Chair with Ottoman assembly step4

STEP 4:

  • Attach “Chair Arms (D/E)” to “Chair Legs (B/C)”-Using “⑦M6 x 80MM Bolts” with “⑧Washer” and “⑨Nut”, tighten with hex key and wrench.

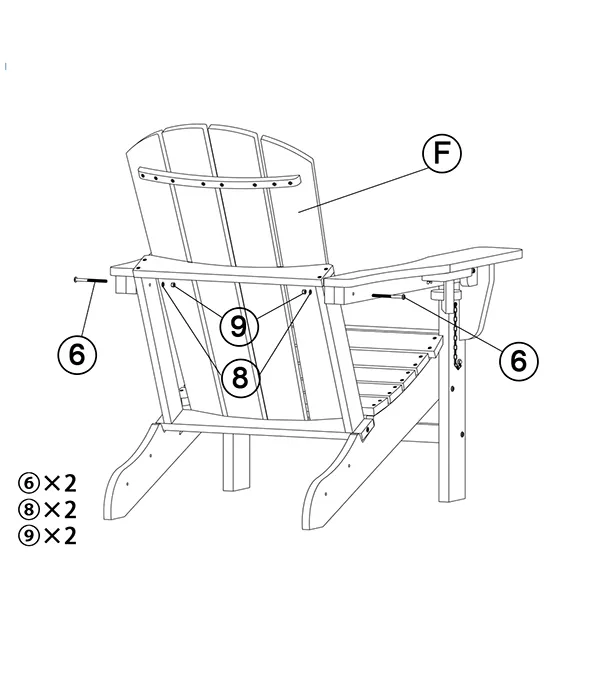

Reclining Folding Adirondack Chair with Ottoman assembly step5

STEP 5:

  • Attach “Chair Arm (D/E)” to”Backrest (F)”-Using”⑥M6 x 80MM Bolts” with “⑧Washer” and “⑨Nut”,tighten with hex key.

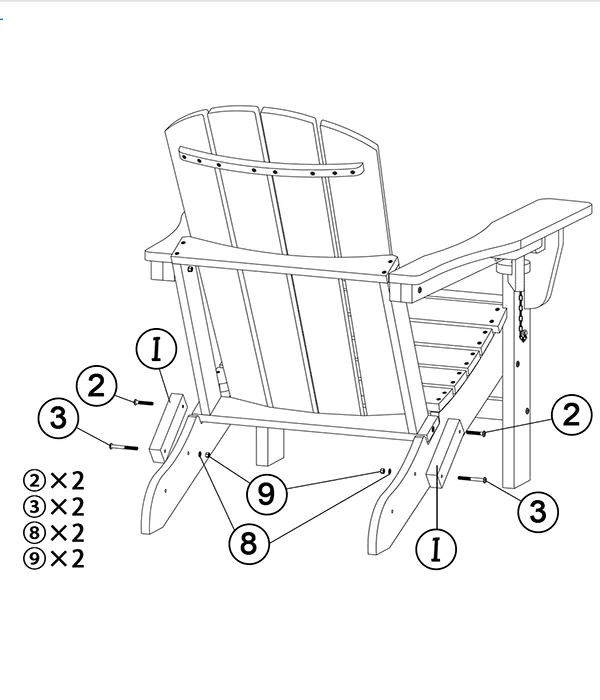

Reclining Folding Adirondack Chair with Ottoman assembly step6

STEP 6:

  • Attach “Backrest (F)” to “Seat Frame (A)” with”Brace (l)” – Using “③M6 x 50MM Bolts” with “⑧Washer” and “⑨Nut” in the back legs, and using “②M6 x 40MM Bolts” on the backrest frame, tighten with hex key and wrench.

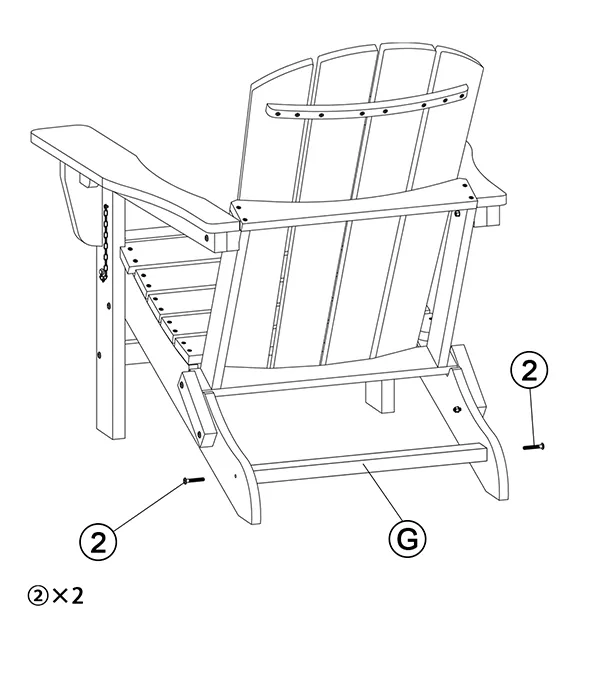

Reclining Folding Adirondack Chair with Ottoman assembly step7

STEP 7:

  • Attach “Back Stretcher (G)” to “Seat Frame (A)”-Using “②M6 x 40MM Bolts”, tighten with hex key.

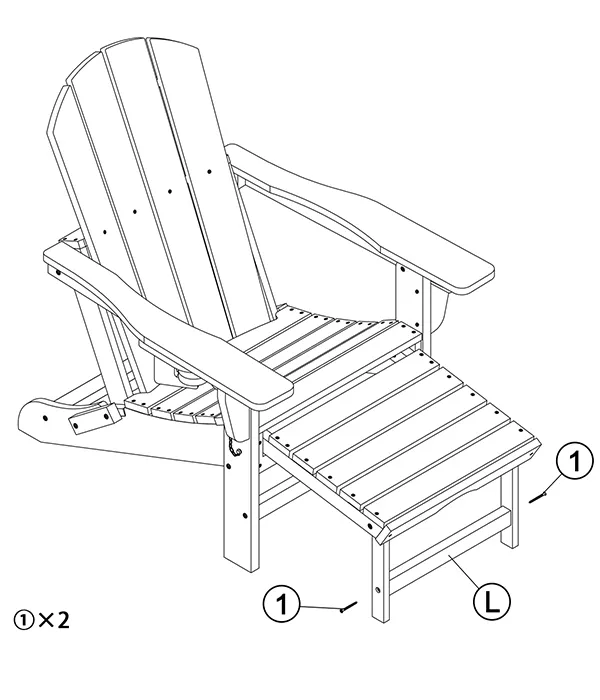

Reclining Folding Adirondack Chair with Ottoman assembly step8

STEP 8:

  • Attach “Foot Support (L)” to the footrest of “Seat Frame (A)” -Using “①M5 x50MM Screws”, tighten with hex key.

Folding Function

This Adirondack chair can be easily folded flat by pulling out the “Plugs (L)” inserted in the front legs. To avoid damage, please keep the plugs inserted when the chair is in use.

A081 002 Folding

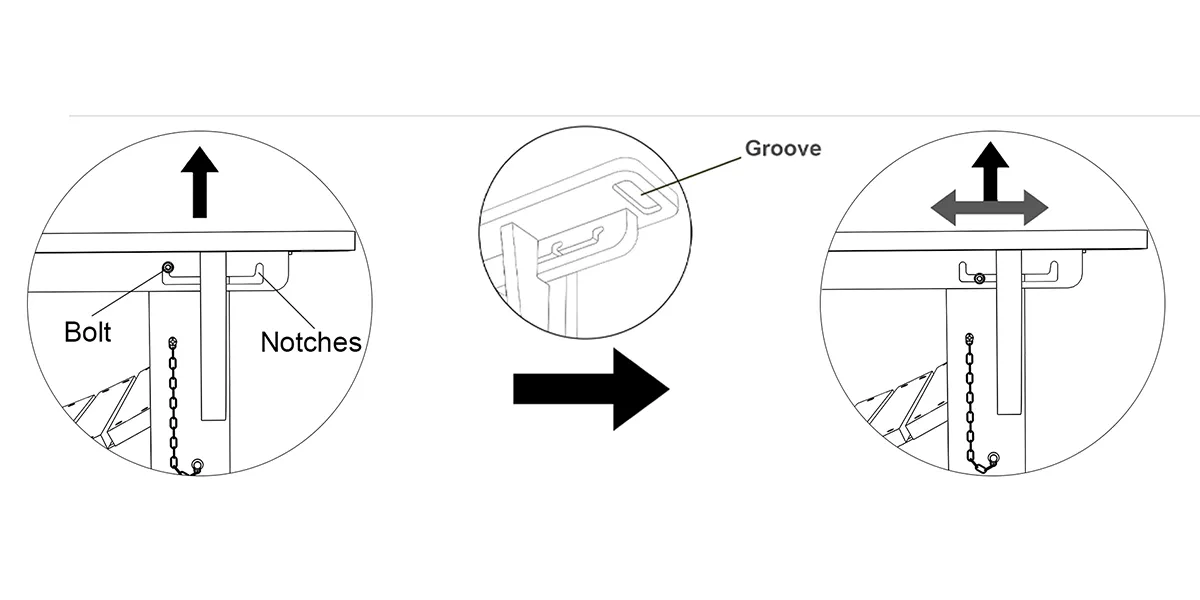

Reclining Function

A041 047 001 Kingyes Reclining Folding Adirondack Chair with Ottoman Reclining
  • Lift both the armrests
  • Pull forward or backward to adjust the backrest to a particular position
  • Then put the armrests down to let bolts rest on the notches simultaneously.
  • (Please do not lay on the backrest when you are adjusting)

Screws, bolts, nuts, and wooden plugs may loosen up during regular use every day. They should be periodically inspected and re-tightened to prevent damage to the furniture and (or) personal property or cause injury. Always check to ensure all hardware and the components mentioned above are attached to the furniture properly and kept tightened at all times.
