Thank you for purchasing Serwall furniture. We have planned that assembly is a quick and straightforward process with our explicit instruction below so that you can assemble your furniture quickly – even after you have moved to a new home.

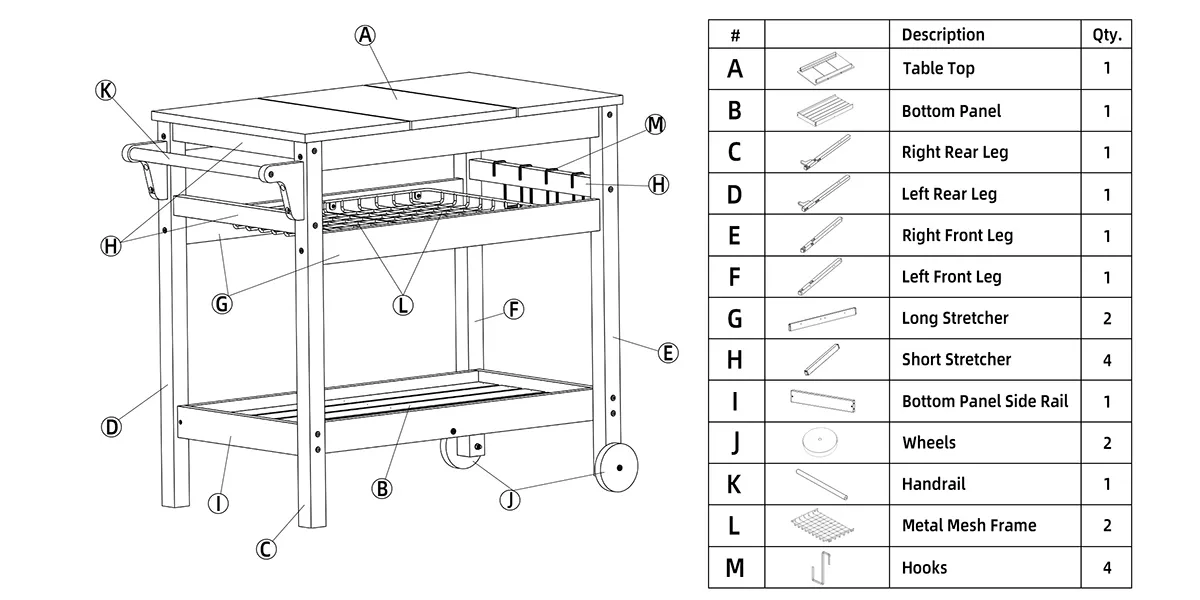

Components
Please make sure that all parts (as follows) have been delivered without any damages.

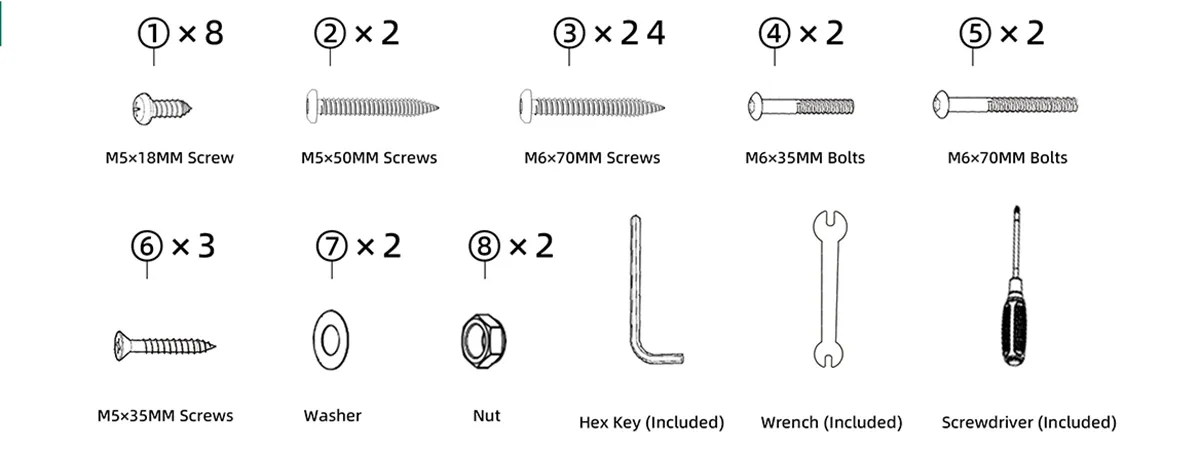

Hardwear & Tools
Be sure check all packing material carefully for small parts that may have come loose inside the carton during shipment.
Missing anything? No worries, submit a request about your missing parts, we will solve your problem in no time.
Assembly Procedure
- Caution: Please do not over-tighten bolts during assembly.

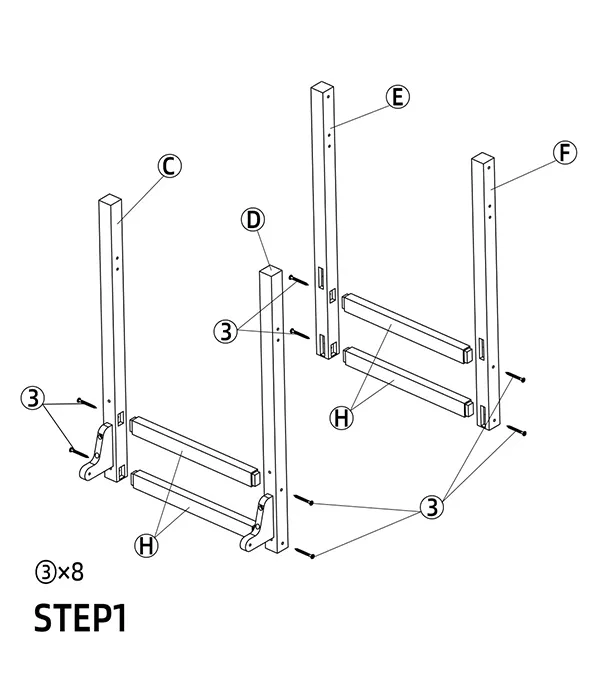

- 1 Attach two “short Stretcher (H)” to “Right Rear Leg (C)” and “Left Rear Leg (D)” to create the rear leg frame.Use “③M6 x 70MM Screws” to secure the parts and tighten with hex key.
- Repeat the process to create the front leg frame.

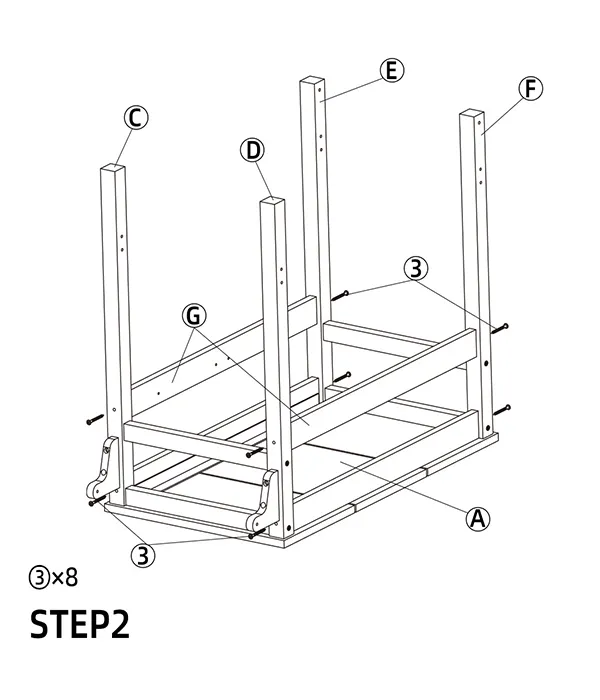

- Attach the two leg frames together with”Table Top (A)” and 2 “Long Stretcher (G)”- Using “③M6 x70MM Screws” and tighten them with hex key.

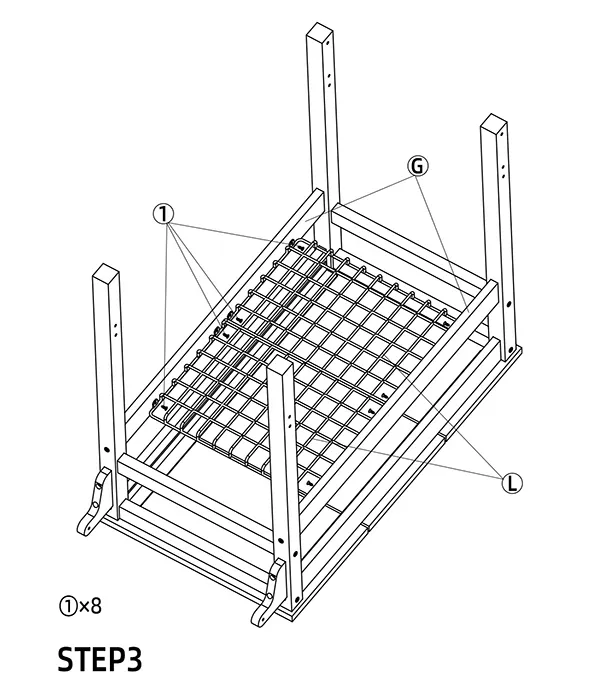

- Attach the two “Metal Mesh Frame (L)”to “Long Stretcher (G)”- Using “①M5 x18MM Screws” ,tighten with screwdriver.

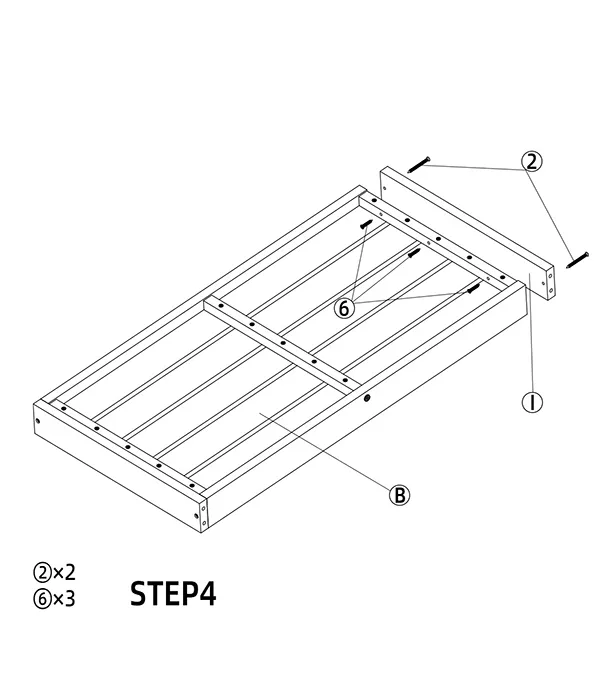

- Attach “Bottom Panel Side Rail (l)” to”Bottom Panel (B)” – Using 2 “②M5 x50MM Screws” and 3 “⑥M5 x35MM Screws” ,tighten with hex key and screw-driver.

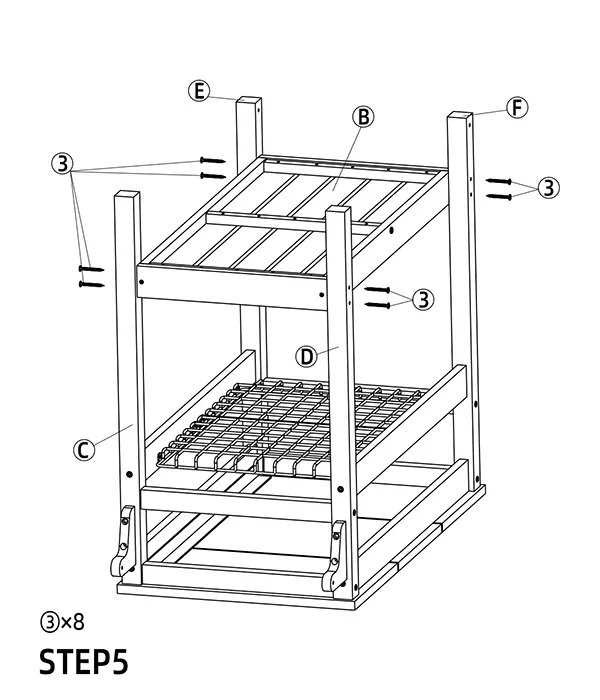

- Attach “Bottom Panel Side Rail (l)” to”Rear Leg (C/D)” and “Front Leg (E/F)”-Using “③M6 x 70MM Screws”,tighten with hex key.

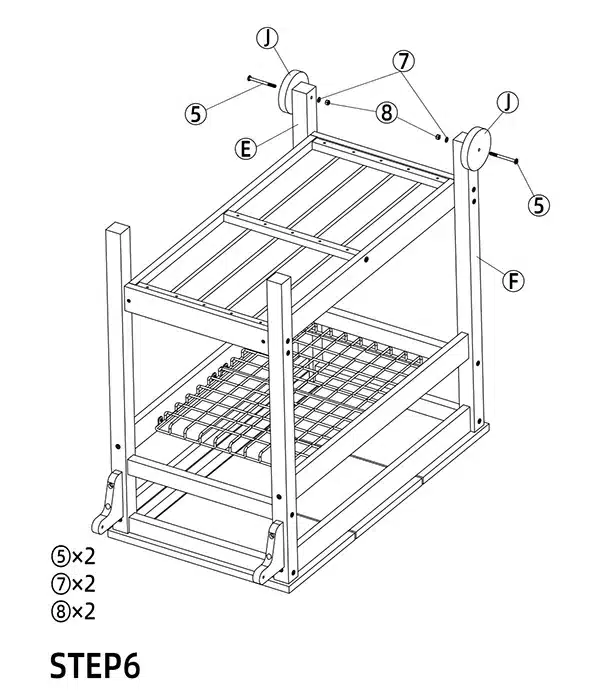

- Attach “Wheels (J)” to “Front Leg(E/F)”-Using “⑤M6 x 70MM Bolts” with “⑦Washer” and “⑧Nut” ,tighten with hex key and wrench.

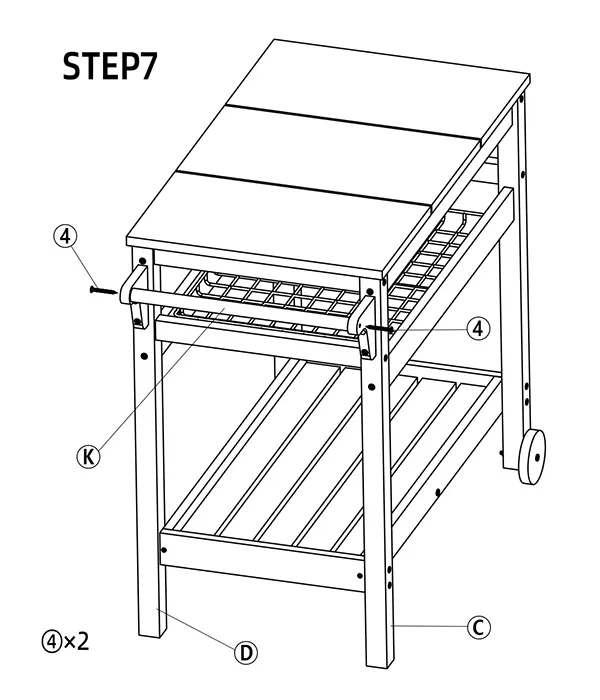

- Attach “Handrail (K)” to “Rear Leg(C/D)” – Using “④M6 x 35MM Bolts”,tighten with hex key.

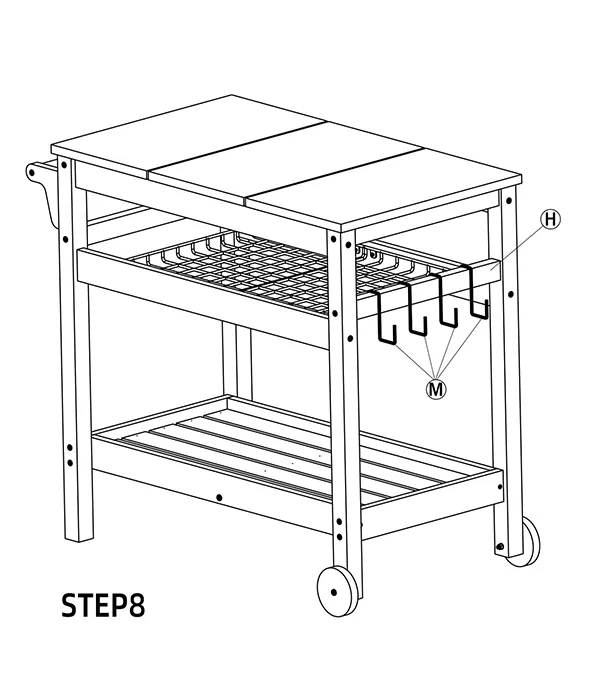

- Hang the four “Hooks (M)” onto the”Short Stretcher (H)” in front by hand.
Screws, bolts, nuts, and wooden plugs may loosen up during regular use every day. They should be periodically inspected and re-tightened to prevent damage to the furniture and (or) personal property or cause injury. Always check to ensure all hardware and the components mentioned above are attached to the furniture properly and kept tightened at all times.
