Thank you for purchasing Serwall furniture. We have planned that assembly is a quick and straightforward process with our explicit instruction below so that you can assemble your furniture quickly – even after you have moved to a new home.

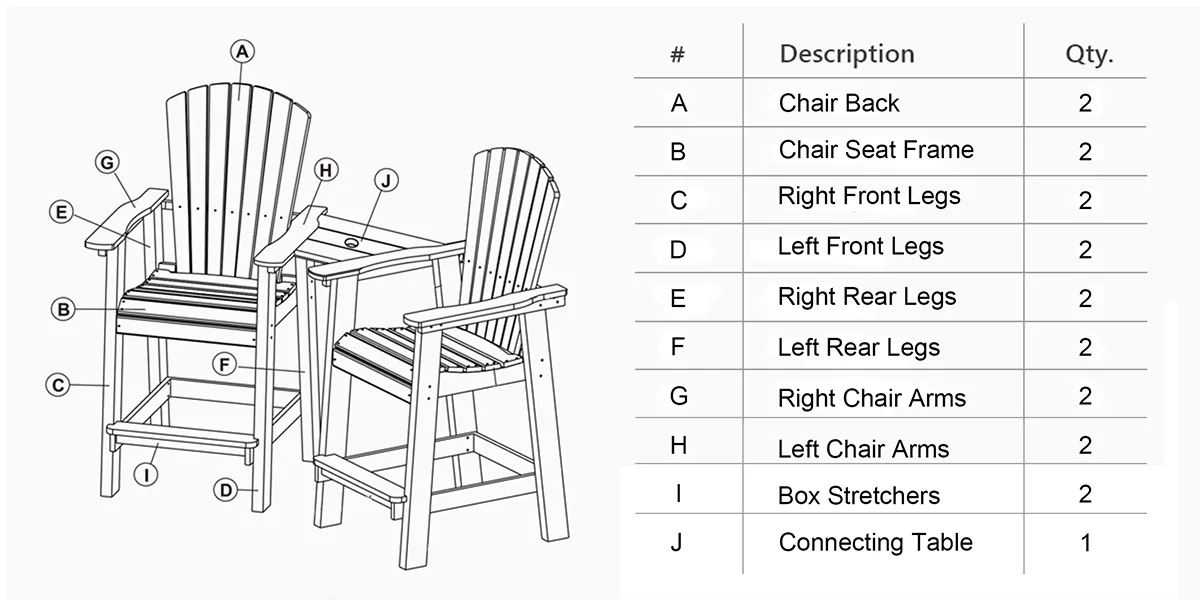

Components
Please make sure that all parts (as follows) have been delivered without any damages.

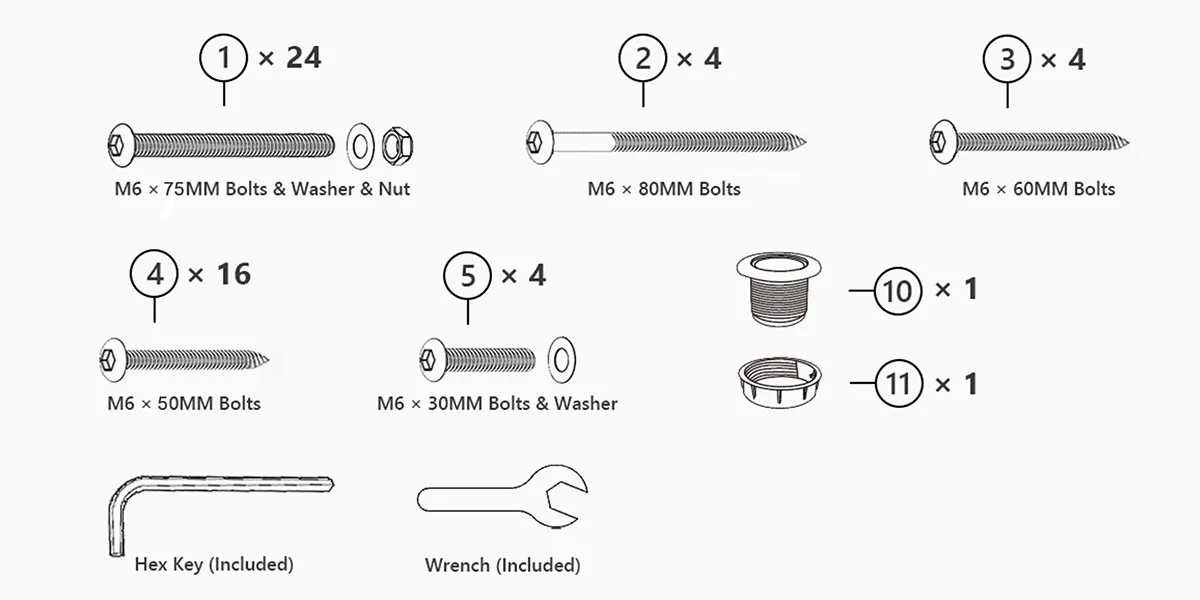

Hardwear & Tools
Be sure check all packing material carefully for small parts that may have come loose inside the carton during shipment.
Missing anything? No worries, submit a request about your missing parts, we will solve your problem in no time.
Assembly Procedure
- Caution: Please do not over-tighten bolts during assembly.

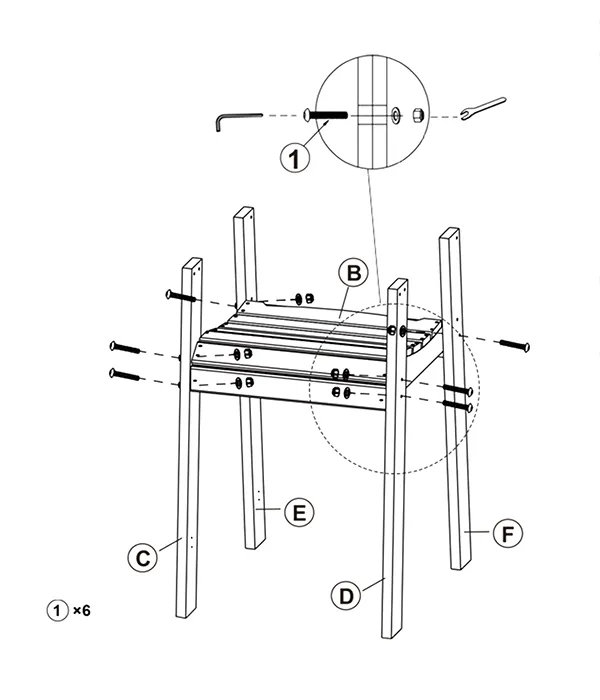

Step 1
- Place all chair parts on a soft and smooth surface to prevent scretching.
- Attach “Front Legs (C/D)” to “Chair Seat Frame(B)”- Using “① M6 x 75MM Bolts & Washer & Nut”tighten with hex key and wrench.
- Attach “Rear Legs (E/F)” to “Chair Seat Frame(B)”-Using “① M6 x 75MM Bolts & Washer & Nut”,tighten with hex key and wrench.

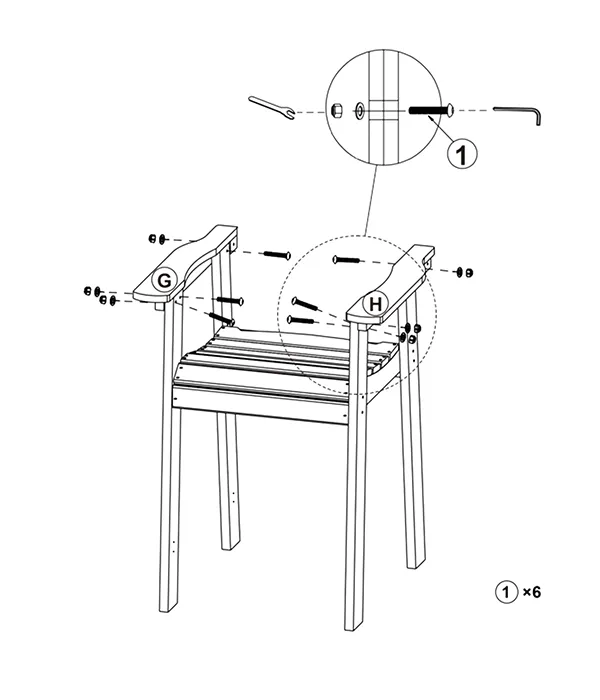

Step 2
- Attach “Chair Arms (G/H)” to “Legs (C/D/E/F)”- Using “① M6 x 75MM Bolts & Washer & Nut”,tighten with hex key and wrench.

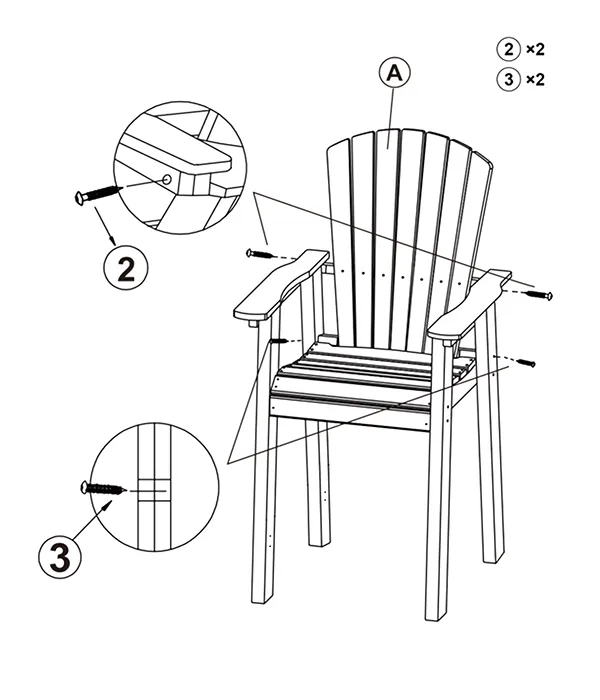

Step 3
- Attach “Chair Back (A)” to “Chair Arms(G/H)” – Using “② M6 x 80MM Bolts”,tighten with hex key.
- Attach “Chair Back (A)” to “Rear Legs(E/F)” – Using “③ M6 x 60MM Bolts”,tighten with hex key.
Step 4
- Attach “Box Stretchers (l)” to Legs(C/D/E/F)” – Using “④ M6 x 50MM Bolts”,tighten with hex key.
- Repeat the step 1 to step 4 to assemble the second bar chair.

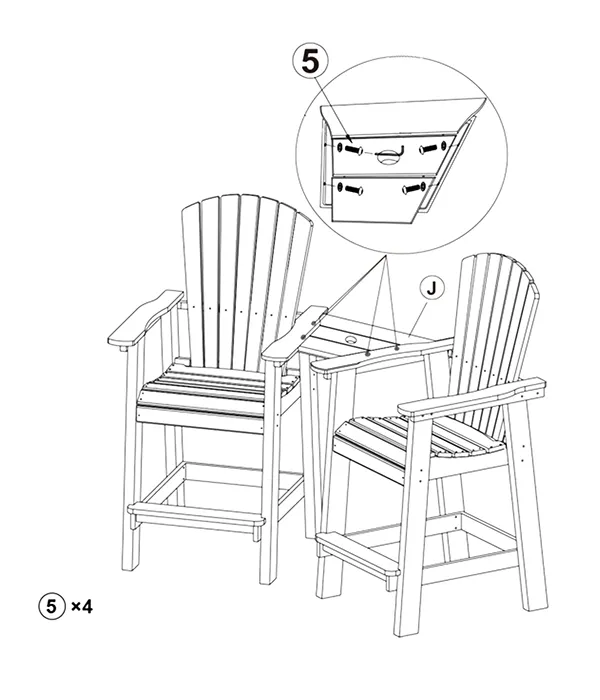

Step 5
- Attach “Connecting Table (J)” to “ChairArms” to connect 2 bar chairs -Using “⑤M6 x 30MM Bolts & Washer”, tighten with hex key.
- The convenient connecting table can be detached at any time if you wish to move the Adirondacks bar chairs.base.

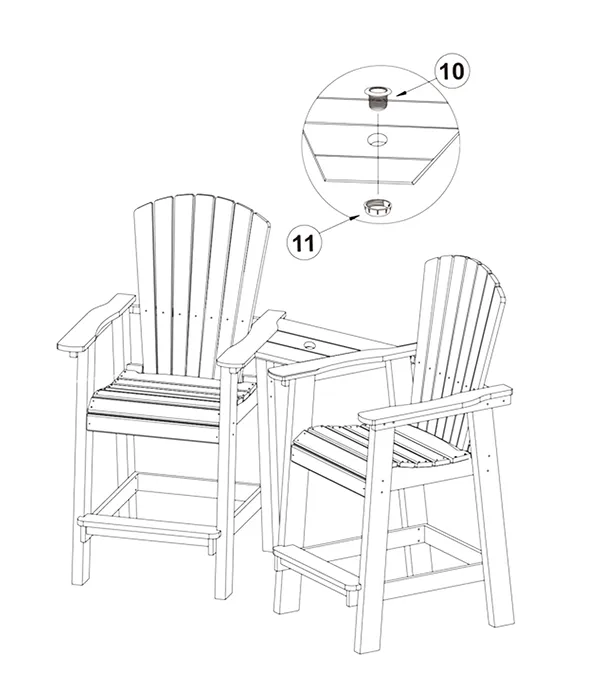

Step 6
- Using the “⑩ and ⑪” to seal the hole on “Connecting Table (J)” – This is an umbrella hole suitable for most of patio umbrella, you could unseal it to attatch patio umbrella.
Screws, bolts, nuts, and wooden plugs may loosen up during regular use every day. They should be periodically inspected and re-tightened to prevent damage to the furniture and (or) personal property or cause injury. Always check to ensure all hardware and the components mentioned above are attached to the furniture properly and kept tightened at all times.
