Thank you for purchasing Serwall furniture. We have planned that assembly is a quick and straightforward process with our explicit instruction below so that you can assemble your furniture quickly – even after you have moved to a new home.

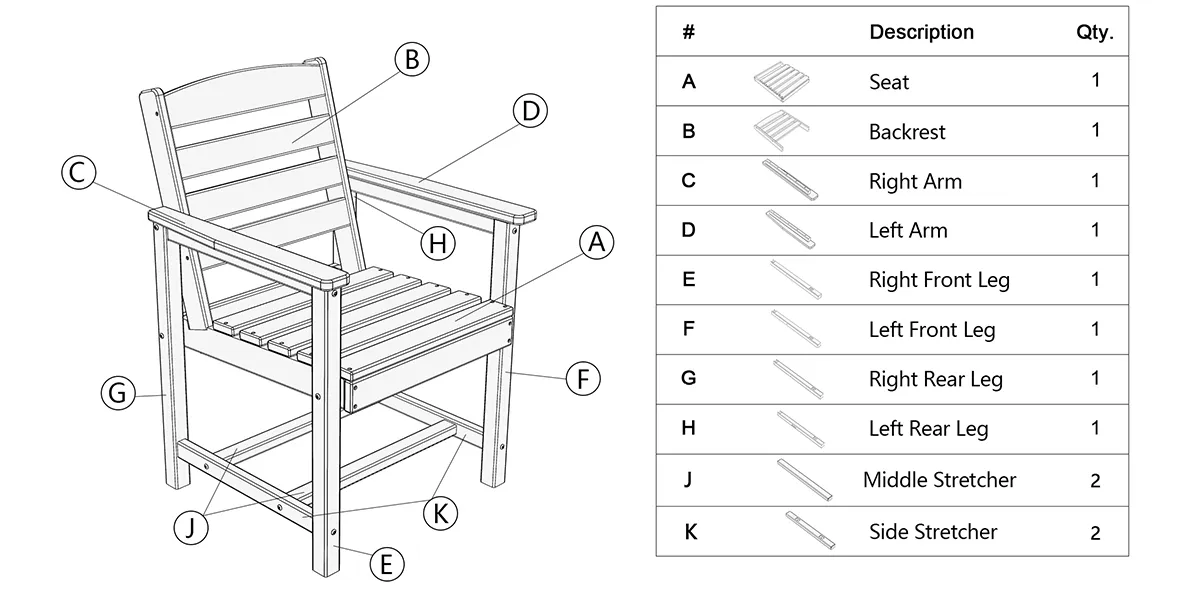

Components
Please make sure that all parts (as follows) have been delivered without any damages.

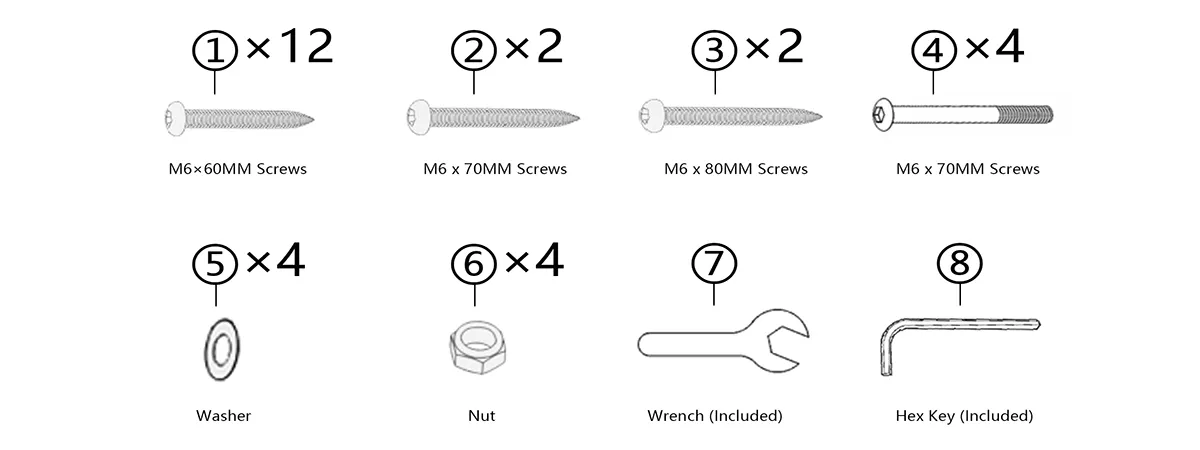

Hardwear & Tools
Be sure check all packing material carefully for small parts that may have come loose inside the carton during shipment.
Missing anything? No worries, submit a request about your missing parts, we will solve your problem in no time.
Assembly Procedure
- Caution: Please do not over-tighten bolts during assembly.

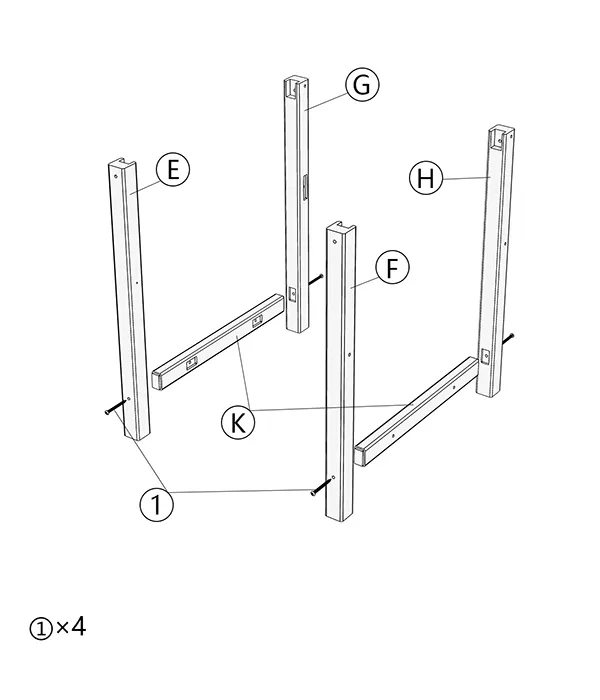

Step 1
- Attach two “Side Stretchers (K) to “Right Front Leg (E)” and”Right Rear Leg (G)” to create the right leg frame. Use “①M6x60MM Screw” to secure the parts and tighten them with a hex key. Repeat the process to create the left leg frame.

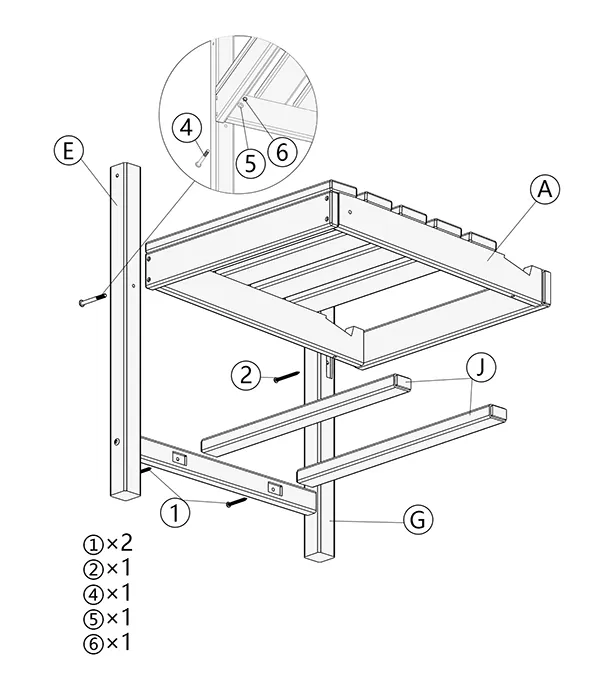

Step 2
- Attach”Middle Stretcher (J)” to”Side Stretcher (K)”. Use “①M6x60MM Screws” and tighten them with a hex key.
- Attach “Seat (A) ” to the right leg frame. Use “④ M6x70MM Bolt”, “⑤ Washer” and “⑥ Nut”on the front leg and tighten with a “⑦ Wrench” and “⑧ Hex Key”, use “② M6x70MM Screw”on the rear leg and tighten with a hex key.

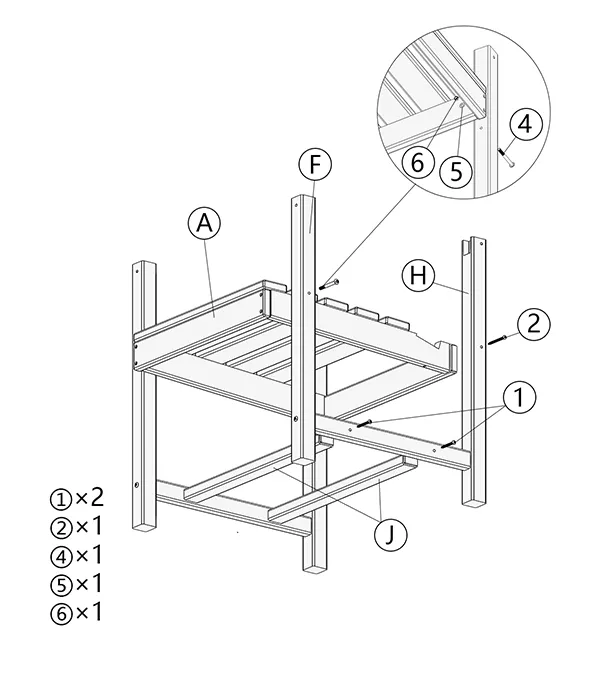

Step 3
- Repeat the process on step 2 to assembly the “Middle Stretcher(J)”and “Seat (A)” to the left leg frame.

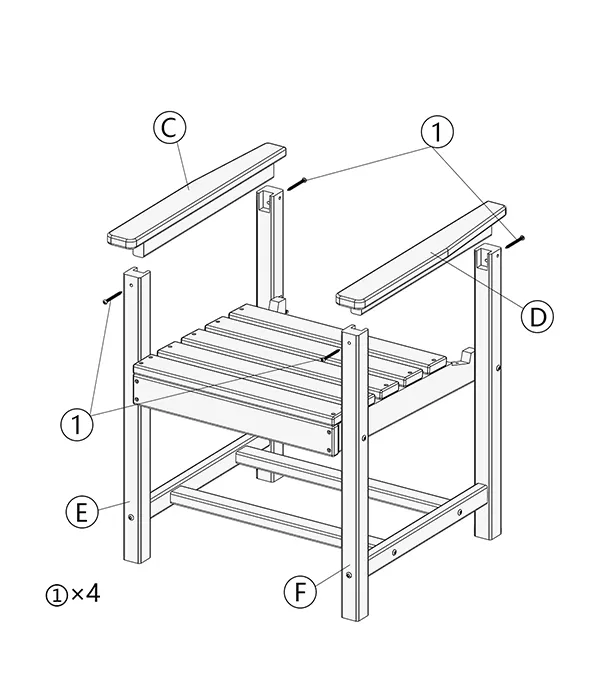

Step 4
- Attach “Right Arm(C)” to right leg frame and attach “Left Arm(D)” to left leg frame using “①M6x60MM Screw” and tighten them with a hex key.

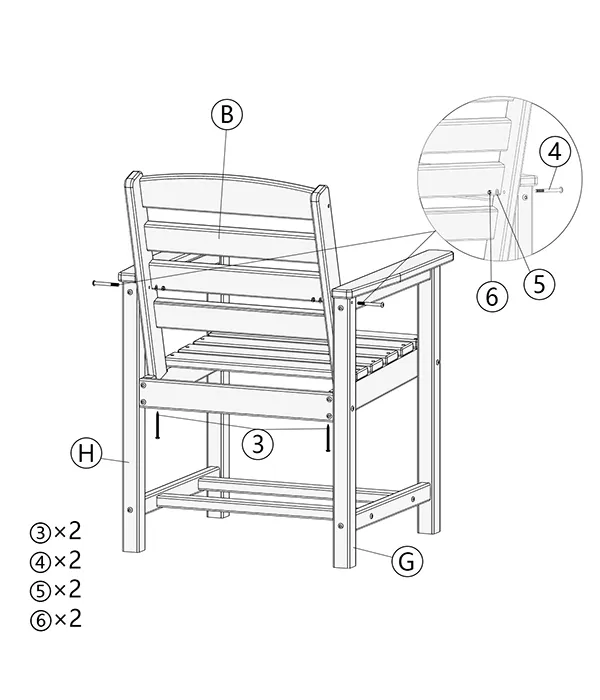

Step 5
- Assembly”Backrest (B)” to the chair frame. Attach the backrest to the seat using “③ M6x80MM Screw” and tighten them with a hex key.
- Attach the backrest to the leg frame using “④ M6x70MM Bolt”, “⑤ Washer” and “⑥ Nut”on the front leg and tighten with a“⑦ Wrench” and “⑧ Hex key.

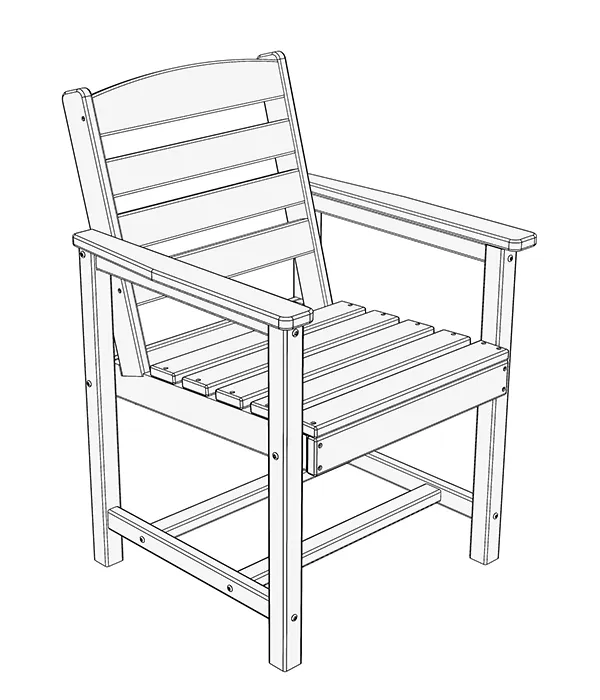

Step 6
- Stand the chair.Place the chair on a LEVEL SUR-FACE.
- Inspect it and make sure all parts are adequately connected. Your chair is ready for use.
Screws, bolts, nuts, and wooden plugs may loosen up during regular use every day. They should be periodically inspected and re-tightened to prevent damage to the furniture and (or) personal property or cause injury. Always check to ensure all hardware and the components mentioned above are attached to the furniture properly and kept tightened at all times.
