54″ Loveseat Porch Swing Assembly Instruction

Thank you for purchasing Serwall furniture. We have planned that assembly is a quick and straightforward process with our explicit instruction below so that you can assemble your furniture quickly – even after you have moved to a new home.

Components

Please make sure that all parts (as follows) have been delivered without any damages.

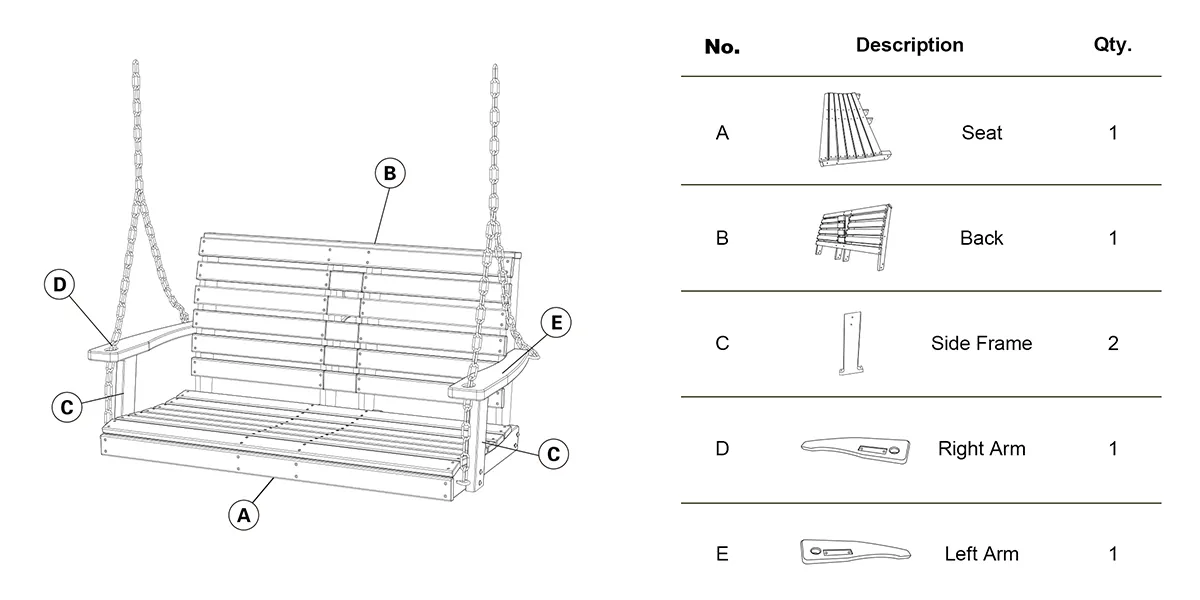

parts of Loveseat Porch Swing

Hardwear & Tools

Be sure check all packing material carefully for small parts that may have come loose inside the carton during shipment.

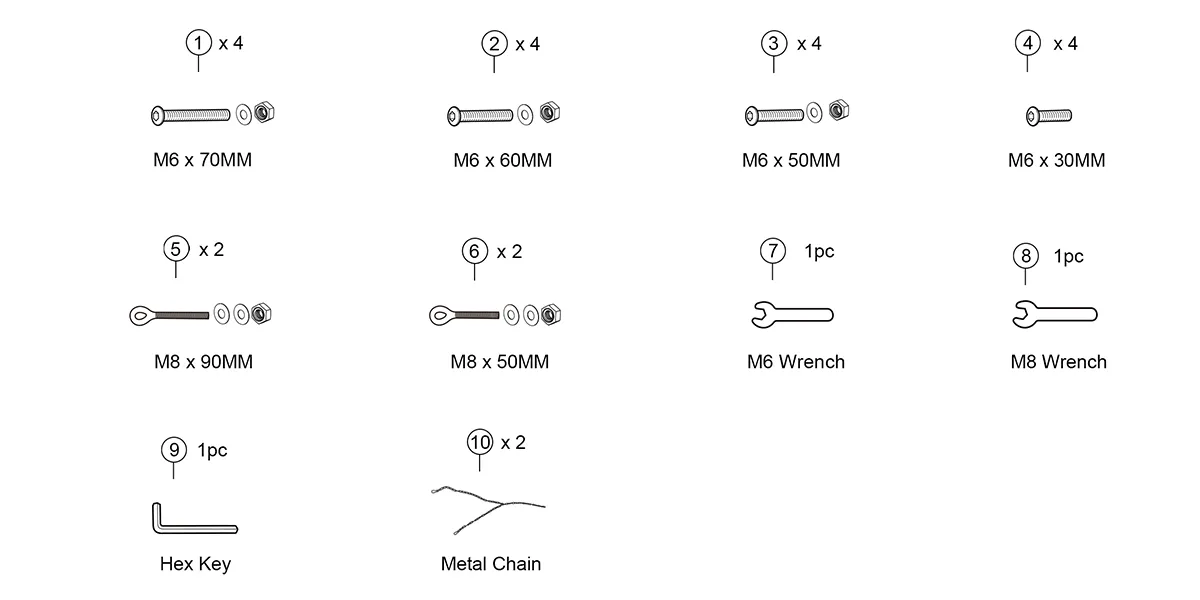

hardware of Loveseat Porch Swing

Missing anything? No worries, submit a request about your missing parts, we will solve your problem in no time.

Assembly Procedure

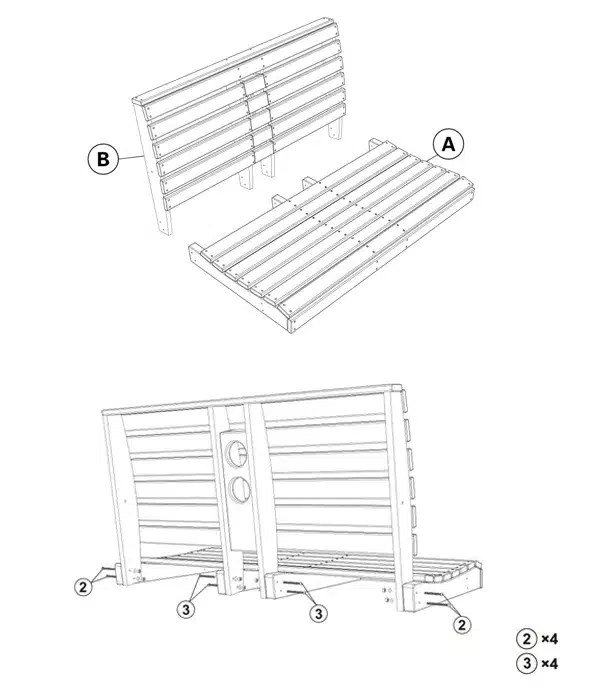

Loveseat Porch Swing assembly step1

Step 1

  • Attach “Back (B)” to “Seat (A)” – Using “② M6 x 60MM Bolts” and “③ M6 x 50MM Bolts”, tighten with hex key and wrench.

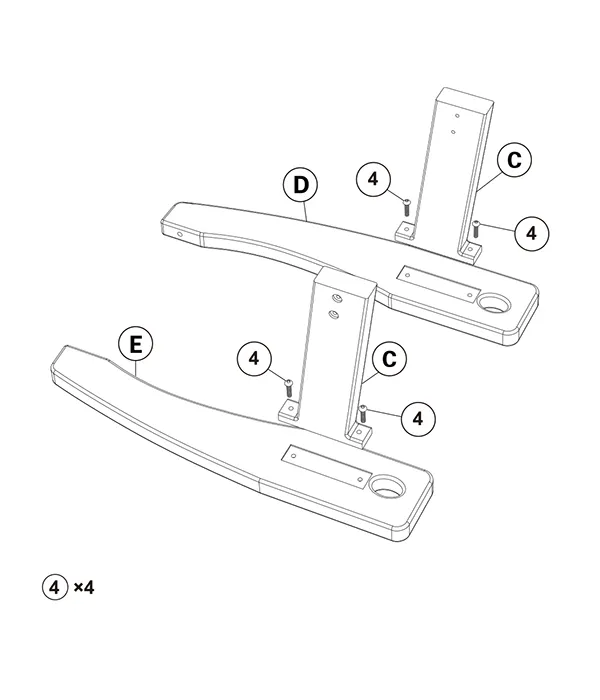

Loveseat Porch Swing assembly step2

Step 2

  • Attach “Side Frame (C)” to “Arms (D/E)”-Using”④ M6 x 30MM Bolts”, tighten with Hex key.

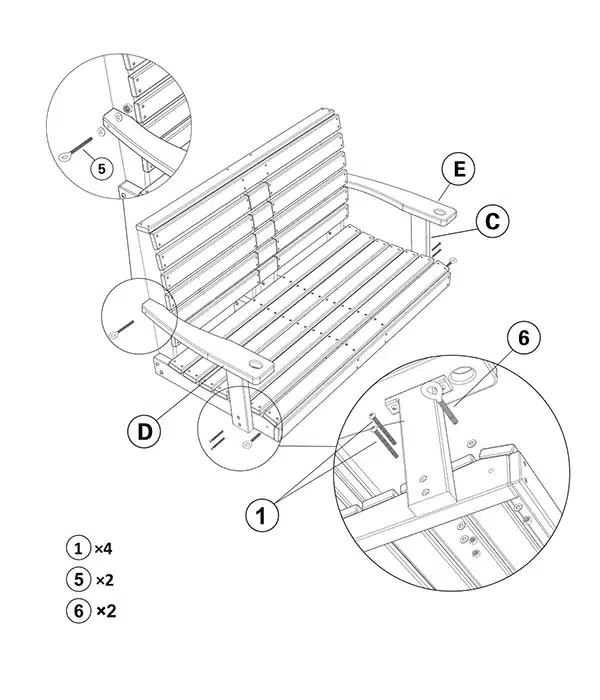

Loveseat Porch Swing assembly step3

Step 3

  • Attach “Arms (D/E)” to”Back (B)”-Using “⑤ M8 x 90MM Bolts”, tighten with wrench.
  • Attach “Side Frame (C)” to “Seat (A)”-Using “① M6 x 70MM Bolts”, tighten with Hex key.
  • Attach “⑥ M8 x 50MM Bolts” to “Seat (A)”, tighten with wrench.

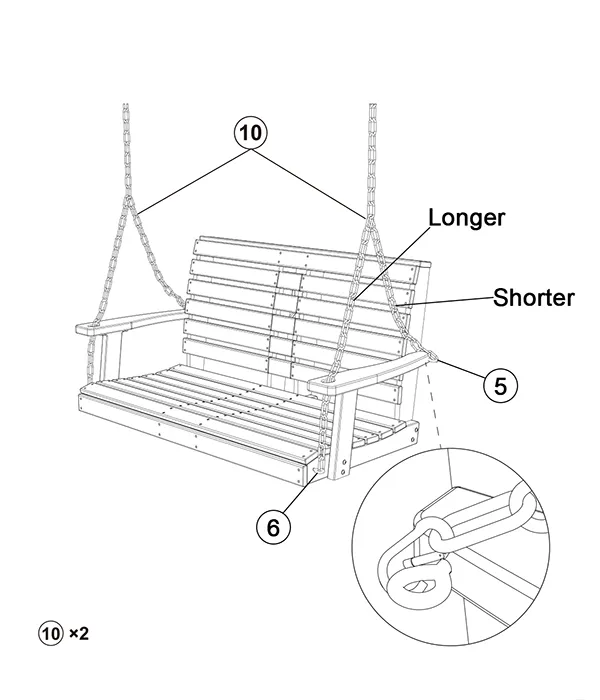

Loveseat Porch Swing assembly step4

Step 4

  • Attach the”Metal Chain” to the swing chair.
  • The longer chain should go through the hole on the arm, then connect the carabiner to the “⑥ M8 x 50MM Bolts”.
  • Connect the carabiner on the shorterchain to the “⑤ M8 x 90MM Bolts”.

Screws, bolts, nuts, and wooden plugs may loosen up during regular use every day. They should be periodically inspected and re-tightened to prevent damage to the furniture and (or) personal property or cause injury. Always check to ensure all hardware and the components mentioned above are attached to the furniture properly and kept tightened at all times.
